agepy.ageplot.figsize

class figsize(medium=None)

Bases: object

Class for choosing the appropriate size of matplotlib figures.

This class provides access to the width and height of the available space in different media in order to choose a figure size for matplotlib plots.

Parameters:

medium: str, optional: Name of the medium. Media, for which the size is implemented, can be viewed with figsize.media. Default: None

Attributes:

w: float: Recommended width for a figure. Most of the time this will be equivalent to the full available width.
h: float: Recommended height corresponding to the width (width * 3 / 4).
wh: tuple: Tuple (w, h) containing the width and recommended height. If there is a corresponding style sheet, the default figure size will be set to (w, h) by agepy.ageplot.use().
hmax: float: Height in inches available for a figure.
media: list: Class wide attribute containing a list of media, for which the figsize is implemented.

Examples

A simple example for the PCCP journal:

>>> from agepy import ageplot
>>> my_figsize = ageplot.figsize("pccp")
>>> my_figsize.wh
(3.54, 2.6550000000000002)

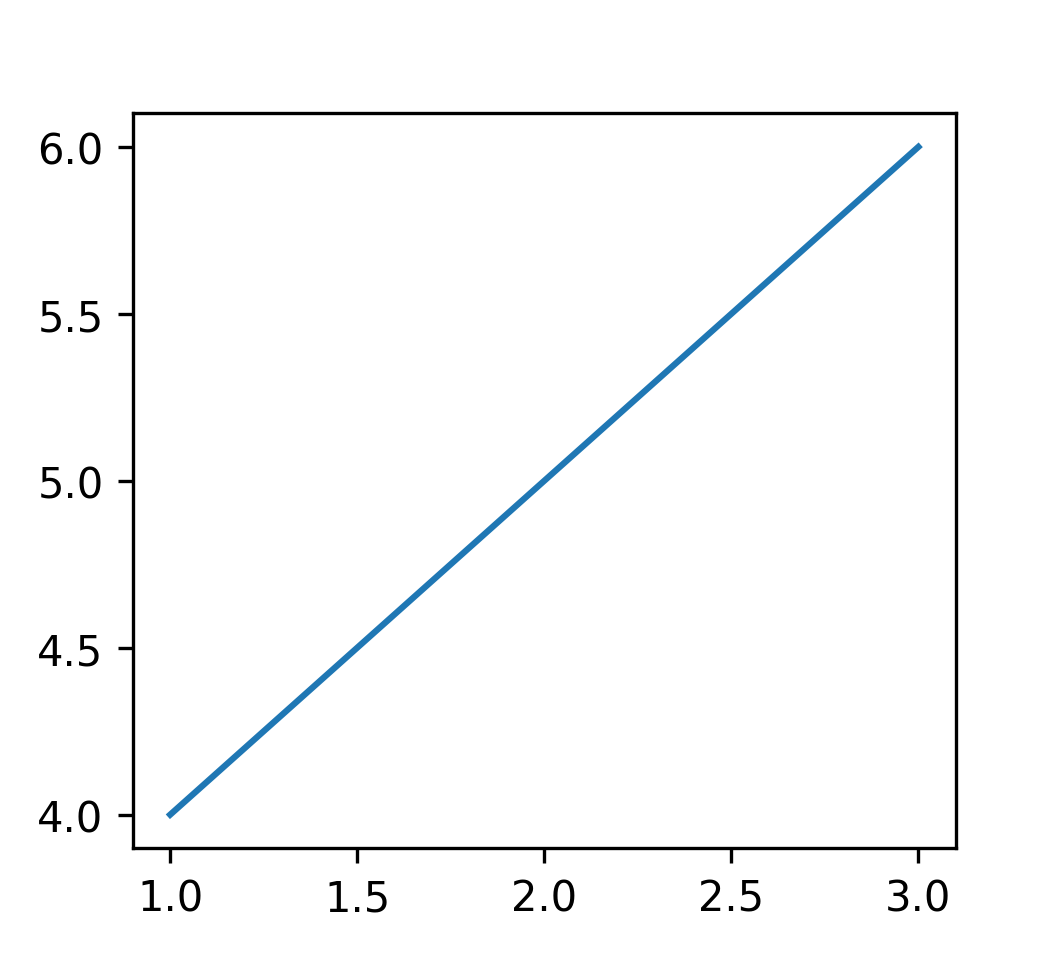

This could be used for a matplotlib plot like this:

>>> import matplotlib.pyplot as plt
>>> fig, ax = plt.subplots(1, figsize=(my_figsize.w, my_figsize.hmax / 3))
>>> plt.plot([1, 2, 3], [4, 5, 6])
